Fusion Splicer

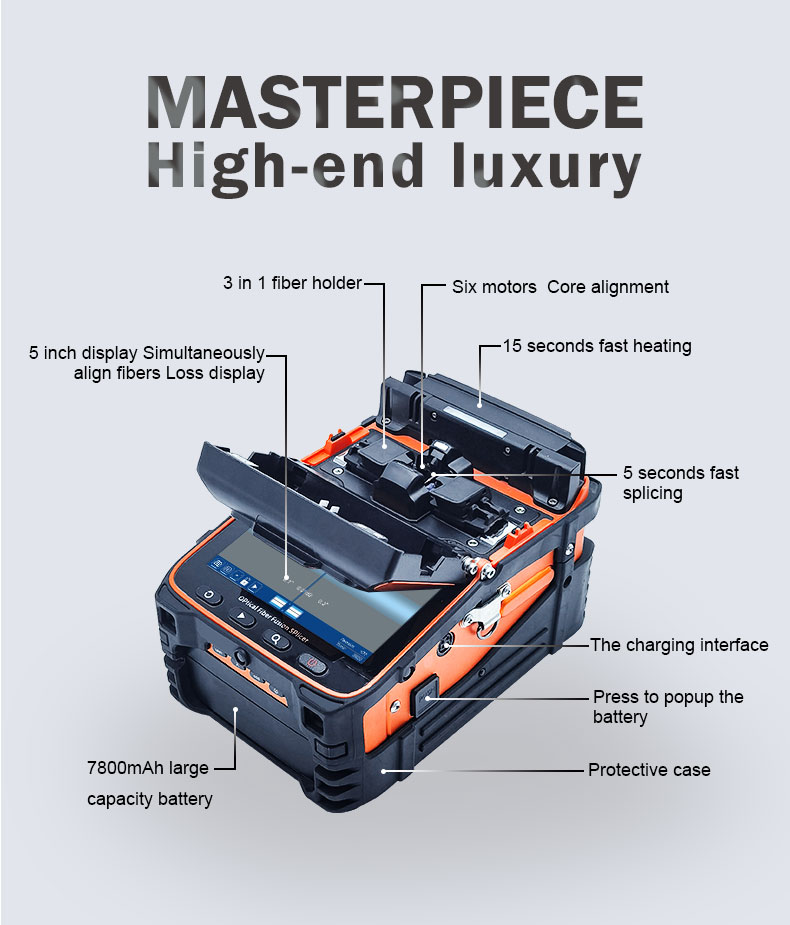

AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.



Specifications

Fiber alignment

Core/cladding alignment  / Manual alignment

Splicing time

5S

Heating time

15S

Heating mode

Automatic heating  (Preheating)

Focus mode

Six motors  Auto focus

Applicable Fibers

SM(G.652&G.657), MM(G.651) DS(G.657),NZDS(G.655)

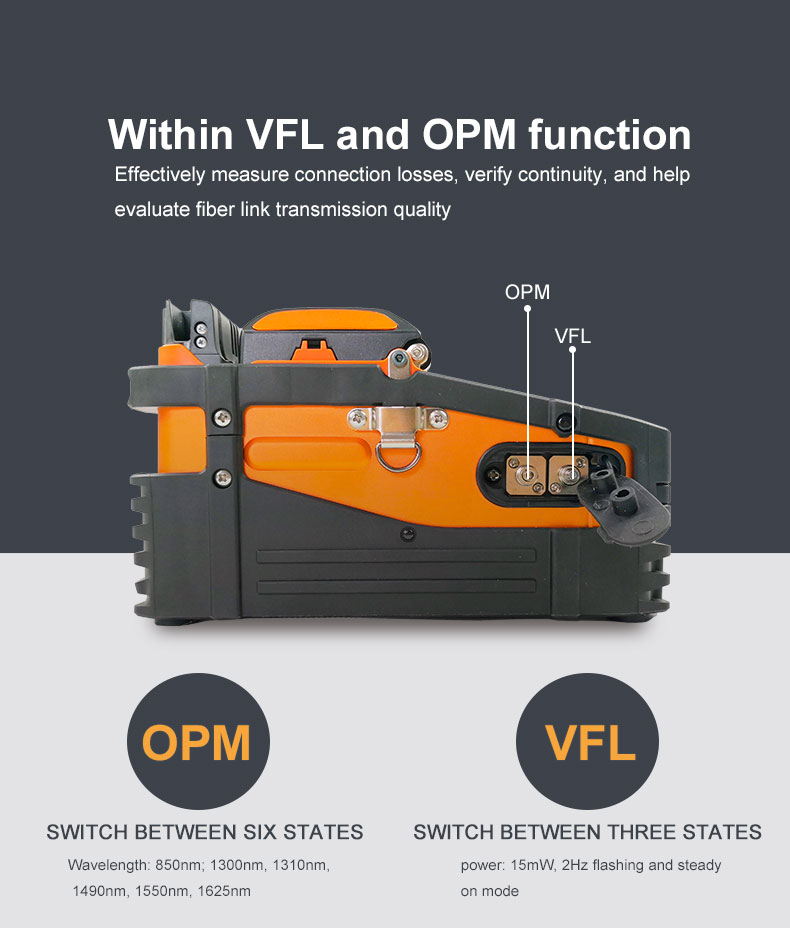

Build in

Optical Power Meter / VFL

Splice Loss

0.025dB(SM),0.01dB(MM) ,0.04dB(DS/NZDS)

Control

technology

Real-time control and calibration of fusion ARC



Return loss

Better than 60DB

Fiber diameter



Cladding Diameter80-150μm

Coating Diameter100-1000μm

Fiber Cleave Length



Coating less than 250µm8-16mm

Coating less than 250-1000µm:16mm

Software updates Length



Automatically update, Update by a key

Tension Test

Standard 2N

Boot Time

 1 second

Fiber holders

3 in 1 fiber holder, SM, MM, bare fiber, pigtail,

rubber-insulated, multi fiber cable

Magnification

300 for X or Y view, 150 for X or Y view

Screen

5 inch TFT color display

Splicing Mode

Fully automatic,Step by step splicing

Splicing record storage



Synchronize to the phone, the server to cloud storage unlimited



Built-in battery

7800 mA high-capacity lithium battery, charging time <3.5 hours, continuous splicing and heating about 200 times

Power supply

Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery

Operating Conditions

Temperature -15 ~ +50 , humidity: <95% RH (no condensation)

Working altitude: 0 ~ 5000m. Resist max. wind speed: < 15m / s

Shrinkable tube

60mm,50mm,40mm,25mm

Product

Waterproof, dust proof, shock-resistant
